PART NUMBER |
VMA-P260U |
| Please note: graphics and photos shown depict this model unless specifically stated otherwise. Graphics details and color may vary slightly during production. | |
HISTORICAL INFO |
|
- First Introduced |
2001 01 01 |
- Availability Status |
Shipping as of August 2001 |
- Supercedes |
Brand New Release |
- Superceded by |
Brand New Release |
| - Change Log Highlights | Click Here |
RECOMMENDED FOR |
Intermediate to Senior. Great for Sport Scale. Officially classed as Semi-Scale with unbelievable resemblance and detailing to match the real thing. |
HOURS TO FINISH |
Eight |
| INDEX to DETAILED INFORMATION | |
| INDEX to PICTURES | |
| PICTURES OF WING | |
- Picture of Wing Top and Bottom. Note Servo Covers provided.
|
 |
| - Frontal View of right wing panel showing true gull like construction and pre-applied air vent. |
 |
| PICTURES OF FUSELAGE | |
|
- Picture of Fuselage Cockpit as seen from left rear quarter. Note Detailing on of pilots and instructment panel.
|
 |
| - Picture of Fuselage as seen from right side. |
 |
| PICTURES OF HORIZONTAL STABILIZER & ELEVATOR | |

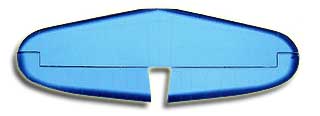

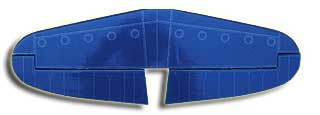

| - Picture of Horizontal Stabilizer and Elevator. Top and Bottom views. |
|
| PICTURES OF VERTICAL STABILIZER & RUDDER | |

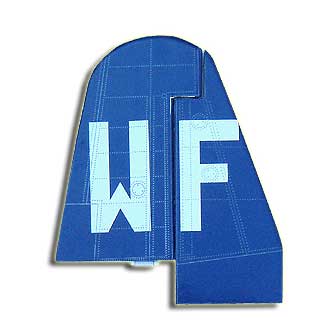

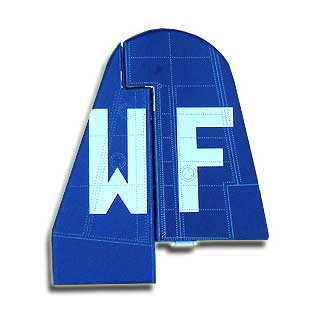

| - Picture of Vertical Stabilizer and Rudder. Left and Right views are identical |
  |
| PICTURES OF LANDING GEAR & STRUTS | |
| - Picture of Main Gear,, Clamps, Wheel Collars, Gear Doors and pre-mounted Struts as provided in hardware pack. |
 |
| - Picture of strut assembly as pre-mounted on both landing gear legs.. |
 |
| PICTURES OF COWL | |

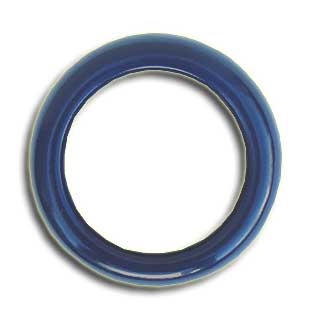

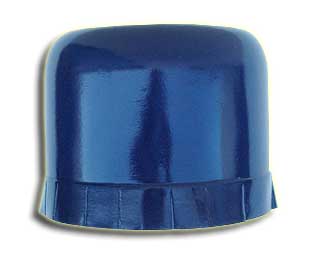

| - Picture of Fibreglass Cowl from front and top. Note scale detailing of exhaust vents.. Completely painted and ready to mount out of the box. |
  |
| More Pictures of Cowl, Belly Pan & Dummy Cylinders | |
| PICTURES OF ENGINE MOUNT & POWER MODULE SYSTEM | |
| - Picture of Engine Mount. Front View. Clamps can accomodate wide range of engine mounting lug sizes. |
 |
- Power Module System |
Yes. Fixed firewall aft. Removable firewall forward secured to aft firewall with mounting bolt system. Engine mounts, tank & engine mounted to removeable firewall. |

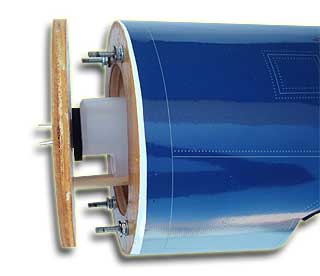

| - Picture of Power Module partially removed from fuselage showing forward removeable firewall with tank (left) and fuselage with aft fixed firewall and retaining studs (right). |
 |

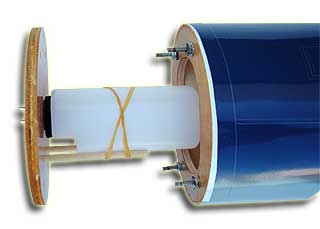

| - Picture of Power Module fully removed from fuselage showing forward removeable firewall with tank (left) and fuselage with aft fixed firewall and retaining studs (right). |
 |
| More Pictures of Power Module | |
| PICTURES OF SERVO TRAY | |
| - Picture of Servo Tray with universally adjustable sliders highlighted in purple shading. Adjust to fit length of Futaba, Airtronics, JR or Hi-Tech standard servo. Tighten screws to lock slider into position. |
 |
| More Pictures of Servo Tray & Linkages | |
|
|
|
| PICTURES OF SERVO TRAY | |
|
|
