More Pictures of F4U Corsair 60-75 ARF Wing

.

Top of Right Wing and Bottom of Left Wing

Cross sectional view of wing root before wings are joined. Note cavities for spar joiner and servo, holes for two alignment dowel.



Wings Joined. Note Scale Gull Effect.



Wing Air Vent pre-applied at factory.

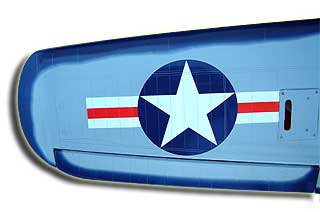

Wing graphics on bottom of right tip.

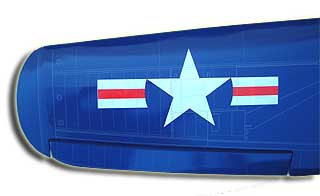

Wing graphics on top of left tip.

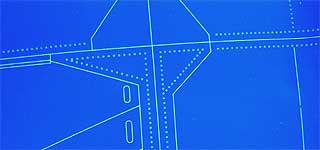

Picture of Wing Graphic Detailing. Note  rivets and panel lines
