More Pictures of F4U Corsair 60-75ARF Fuselage

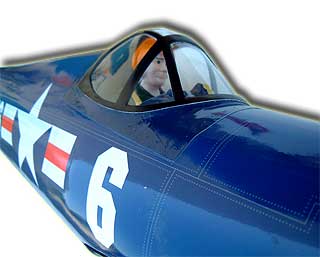

Picture of Fuselage as seen from right front quarter.

Note Detailing of Pilots and Cockpit..



Picture of Cockpit as seen from right rear quarter.

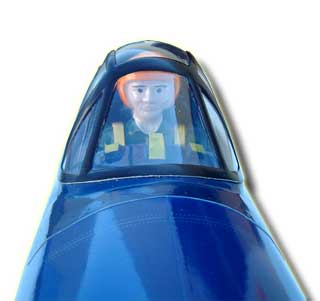

Picture of Cockpit as seen from front.

Picture of Fuselage as seen from right side.



Picture of Fuselage as seen from left side.



View of Top of Fuselage.



View of Bottom of Fuselage.

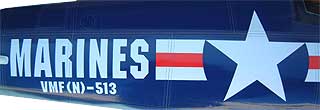

Graphic Detailing on Right Side of Fuselage.

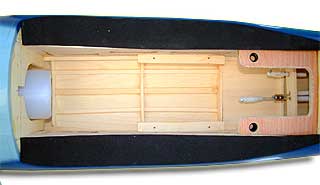

Inside of fuselage looking at radio compartment. Rear of tank visible left... servo rods running aft right.

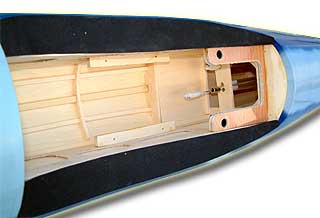

Inside of fuselage looking slightly aft.

Note curved construction top and double wall construction sides. Wing saddle foam factory installed. .

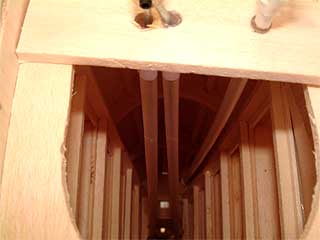

Inside of fuselage looking aft with fuselage inverted.

Note:  Steel control rods in guide tubes

Note all clean wood construction. No Foam.

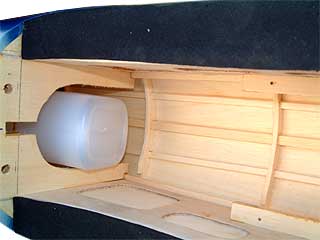

Inside of fuselage looking forward at back of tank and into fuel tank compartment.

 Curved top of fuselage visible above.

Note all clean wood construction. No Foam.
