Hardware Parts Bags included with VMAR Pilatus PC9

These Parts Bags are all included with this model and packed in the Master Parts Bag for Shipping Purposes.

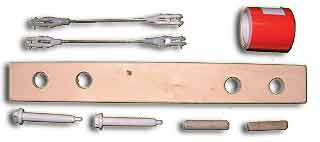

Wing Parts Bag. The two control rods connect to horns already installed on the wing, The spar joiner, wood dowels & trim tape are for joining the wing.

Australia Version #VMA-P240AWPB. Swiss Version #VMA-P240SWPB
Landing Gear Parts Bag. This is a trike set complete with pre-installed struts. Includes clamps, screws, wheel collars and wheels. Also two plastic gear doors (

Australia Version  #VMA-P240AMGB Swiss Version #VMA-P240SMGB


Side view of one of the pre-mounted struts contained in the Landing Gear Parts Bag. As shown in singles #VMA-STR045S also includes wheel. Plastic Strut only without wire or wheel #VMA-STR045
Control Horn Parts Bag. Each horn set consists of a nylon bevelled washer (shown to the left) a bolt, a nylon T shaped nut, a metal lock nut and a nylon control horn (right). #VMA-CHSET
Engine Mount Parts Bag. Cast Aluminum with clamping plates and hex head machine screws. Fits just about any engine suitable for this model. #RRC-MOUNTUNI
Spinner Parts Bag. A real spinner with allen screws, allen wrench & assorted collets for engine shafts! #VMA-SPIN225R
Misc Parts Bag. The blocks with a grove are for anchoring and guiding the throttle and steering control rods. #VMA-P240AXPB

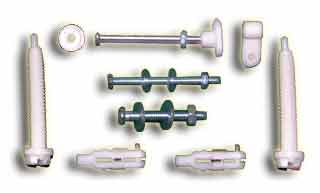

Spare Parts Bag. Just in case you lose something... we've included some spares. May vary slightly from that shown #VMA-P240ASPB
