More Pictures of Pilatus 45-60ARF Fuselage

Picture of Fuselage as seen from left front quarter.

Note Detailing of Pilots and Cockpit..



Picture of Fuselage as seen from left rear quarter.

Note Detailing on of pilots and instructment panel.

Picture of Fuselage as seen from right side.



Picture of Fuselage as seen from left side.

View of Top of Fuselage.

View of Bottom of Fuselage.

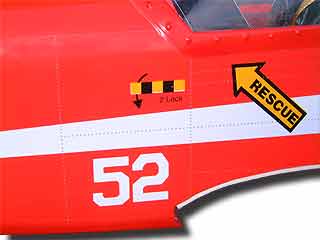

Graphic Detailing on Right Side of Fuselage. Note 3D raised rivets beneath canopy.

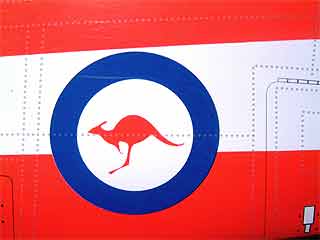

Graphic Detailing on Side of Fuselage. Note extensive rivets and panel lines plus access hatch hinge line and handle.

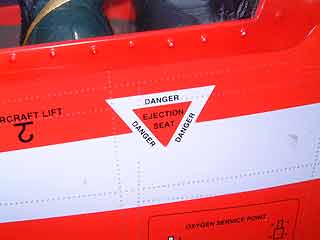

Graphic Detailing on Side of Fuselage. Note 3D raised rivets beneath canopy.

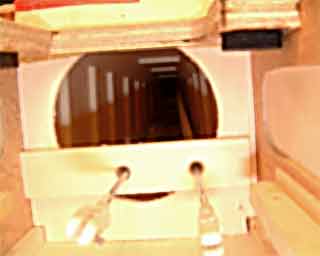

Inside of fuselage looking aft with fuselage inverted.

Note: Servo Tray rails and steel control rods in guide tubes

Note all clean wood construction. No Foam.



Inside of fuselage looking forward at back of fixed firewall and into fuel tank compartment.

 Curved top of fuselage visible above.

Note all clean wood construction. No Foam.
