These Parts Bags are all included with this model and packed in the Master Parts Bag for Shipping Purposes.
| Hardware Parts Bags included with VMAR Discovery 40 ARF Trainer |
|
|
These Parts Bags are all included with this model and packed in the Master Parts Bag for Shipping Purposes.
|
|

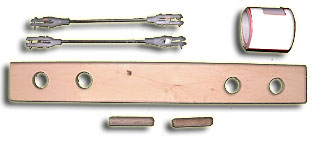

| Wing Parts Bag. The two control rods connect to horns already installed on the wing, The spar joiner, wood dowels & trim tape are for joining the wing. (Note: The spar joiner may be packed loose within the Master Parts Bag) #VMA-D014WPB. |
 |
| Nose Gear Parts Bag. The Discovery utilizes a Trike Gear Configuration The nose gear bag contains the pre-bent nose gear wire, steering arm, wheel collars and nose wheel. (Note: the Nose Gear Parts Bag may be packed within the Main Gear Parts Bag. The wheel may be packed loose in the Master Parts Bag) #VMA-D014NGPB |
 |
|
Main Gear Parts Bag.
Contains pre-bent main gear wires, landing gear
straps, mounting screws, wheel collars, wheel collar allen wrench and two
wheels. (Note: the wheels may be packed loose in the Master Parts Bag. The
Nose Gear Parts Bag may be packed in the Main Gear Parts Bag)
#VMA-D014MGPB
|
 |

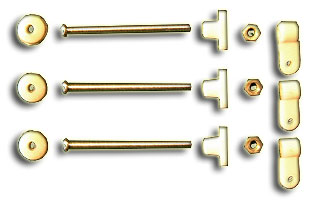

| Control Horn Parts Bag. Each horn set consists of a nylon bevelled washer (shown to the left) a bolt, a nylon T shaped nut, a metal lock nut and a nylon control horn (right). #VMA-CHSET (2 horns only) |
 |

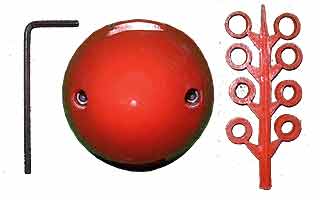

| Spinner Parts Bag. A real spinner with allen screws, allen wrench & assorted collets for engine shafts! #VMA-SPIN225R |
 |

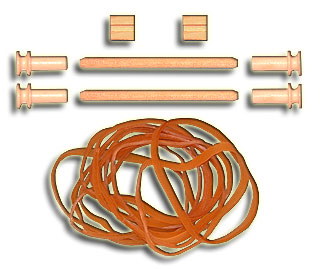

| Misc
Parts Bag.
Contains two wooden
blocks with a groove for anchoring and guiding the
throttle and steering control rods, two wing mounting
dowels and end cap sets, approx 12 Aircraft Grade #64 Pure Rubber Bands.
#VMA-D014XPB Rubber Bands only #RRC_RB64 (4oz Box) |
 |

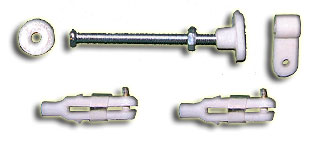

| Spare Parts Bag. Just in case you lose something... we've included some spares. May vary slightly from that shown #VMA-D014SPB |
 |
