More Pictures of Discovery 40 ARF Trainer Fuselage

Fuselage Pictures Shown in Red.  "Blue" Model substututes Dark Blue for Red and Light Blue for Orange.

Picture of Fuselage as seen from left front quarter.

Note Simulated Window Treatment..



Picture of Fuselage as seen from left rear quarter.

Note Simulated Window Treatment



Picture of Fuselage as seen from right side.



Picture of Fuselage as seen from left side.



View of Top of Fuselage.



View of Bottom of Fuselage.

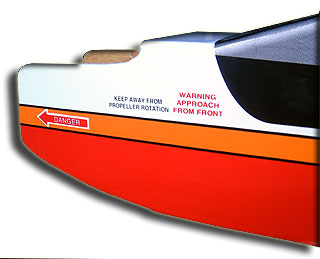

Graphic Detailing on Left Side of Fuselage.

Note Cautions & Warnings related to propeller.

Graphic Detailing on inside of Fuselage.

 Enhanced Instructions to assist first time builders.

Inside of fuselage looking aft with fuselage inverted.

Note all clean wood construction. No Foam.

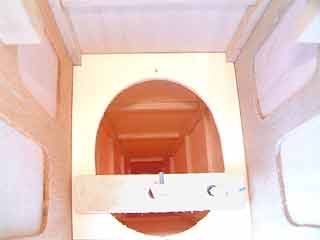

Inside of fuselage looking forward at back of  firewall and into fuel tank compartment.

Note all clean wood construction. No Foam.
