More Pictures of AT6 Texan Wing

 at0014u 300x201 drop shadow copy.jpg (20772 bytes)

Bottom of Right Wing





Top of Left Wing

 at0014u_texan_wing_topandbottom1 copy.JPG (18728 bytes)

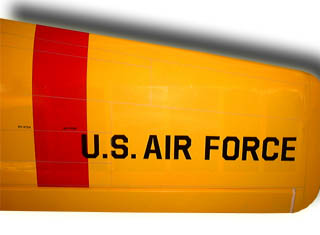

Top of Right Wing showing US Air Force Graphic.

at0014u_texan_wing_graphics_usaf copy.JPG (17685 bytes)

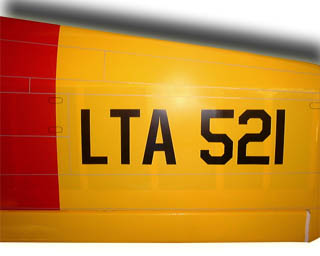

Bottom of Left Wing showing LTA 521 Graphic

 at0014u_texan_wing_graphics_lta521 copy.JPG (19840 bytes)
Cross sectional view of wing root before wings are joined. Note cavity for spar joiner and holes for two alignment dowels at0014u_texan_wing_root copy.JPG (9868 bytes)

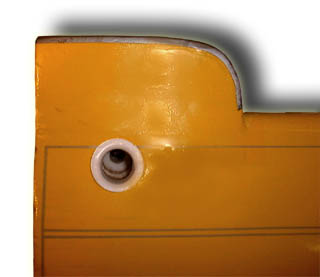

Picture of wing bolt alignment insert.

Note at top of picture the "front flange" added to wing for scale like appearance where wing meets fuselage wing saddle.

at0014u_texan_wing_bolt_guide copy.JPG (15413 bytes)

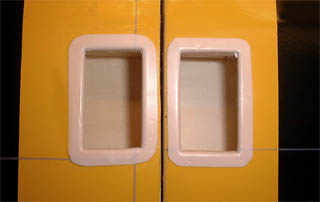

Wing servo tray liners. Only one servo is needed for standard aileron operation. Note provision for a second servo if flaperon capability is wanted.

at0014u_texan_wing_servotrayliners copy.JPG (14519 bytes)

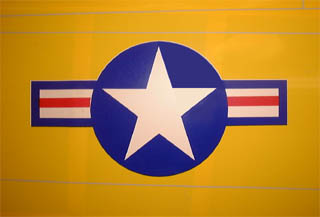

Graphic Detailing.



 at0014u_texan_wing_graphics_starsandbars2 copy.JPG (17034 bytes)

Graphic Detailing.

 at0014u_texan_wing_graphics_91octane_big copy.JPG (13610 bytes)

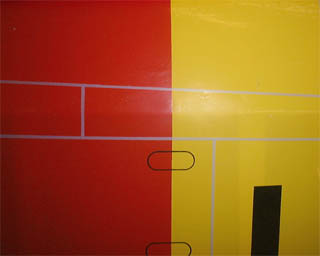

Graphic Detailing.

 at0014u_texan_wing_graphics_panellines copy.JPG (13297 bytes)
