More Pictures of RCAF Harvard Power Module System

 at0014c 300x201 drop shadow copy.jpg (21245 bytes)

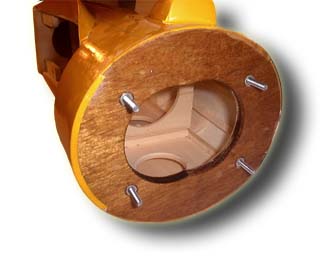

Picture of fuselage with aft fixed firewall and retaining studs. Power Module consisting of forward removeable firewall and tank has been completely removed from fuselage




Picture of Power Module during insertion process. The forward removeable firewall and tank assembly (right) are slid into the fuselage to mate with the fixed aft firewall (left).

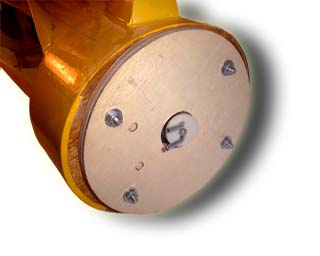

Picture showing completely inserted and installed Power Module after retaining nuts applied to studs.
