More Pictures of Apache II Wing
Top of Right Wing and Bottom of Left Wing

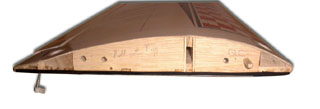

Cross sectional view of wing root before wings are joined. Note cavity for spar joiner, holes for two alignment dowels (one fitted in picture) and holes for two steel bolts.
Cross sectional view of wing tip. Note anti stall Horner tip.

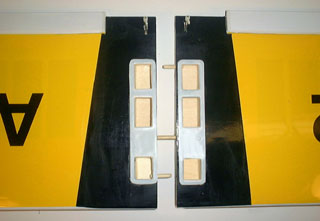

Wings being joined. Note spar joiner, two alignment dowels and access bays for installation of steel bolts and servo. Note provision for a second servo if flaperon capability is wanted.
Wing bolt installation. Bolt head and washer visible in access bay. Bolt passes through holes in the wing roots and is secured by nut and washer in the other wing half
Note end of alignment dowel visible near top of access bay.

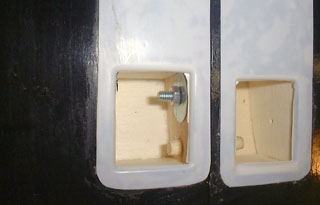

Wing bolt installation. Nut and washer visible in access bay.
Note alignment dowel visible near bottom of access bay as it passes through the wing halves.
Picture of Wing Tip illustrating graphic detailing.
No ARF Trainer has more graphics detailing on an Apache II.

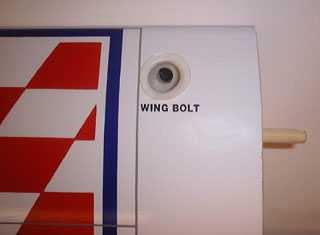

Picture of wing bolt alignment insert and labelling.
No ARF Trainer has more graphics detailing on an Apache II.

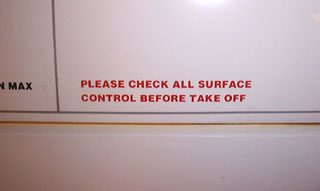

Picture of wing warning near ailerons
A reminder that just a quick check before flying can save the day!

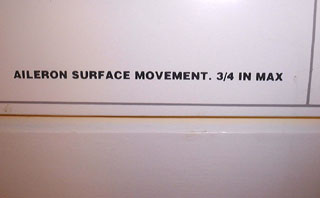

Picture of throw specifications near ailerons
Never be in doubt... we've printed the throws right into the covering!
