More Pictures of Apache II Fuselage

 a00142 300x201 drop shadow copy.jpg (28793 bytes)

Picture of Fuselage as seen from right front quarter.

Engine mount is solid cast aluminum with allen head black machine screws and pretapped holes.

a00142 fuse from front right copy.jpg (17392 bytes)

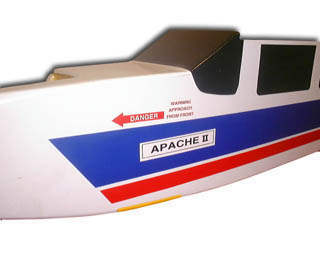

Picture of Fuselage as seen from left front quarter.

Note Detailing on Fuselage. The detailing is not done with decals, it's printed right onto the covering.

 a00142 fuse from left front copy.jpg (18007 bytes)

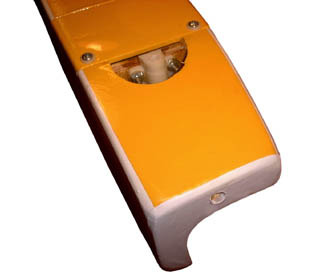

View from front looking at bottom of Fuselage showing nose gear bearing, nose gear adjustment hole in nose and access hatch

Note yellow color to denote bottom from top.



 a00142 fuse bottom hatch and ng block copy.jpg (16339 bytes)

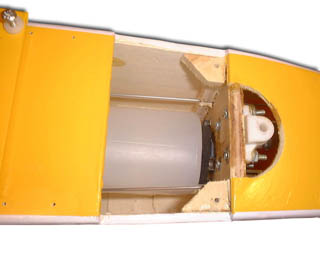

View of bottom of Fuselage with access hatch removed.

Note nose gear bearing, bottom of fuel tank, nose gear and engine throttle rods.

 a00142 fuse bottom with hatch removed copy.jpg (16909 bytes)

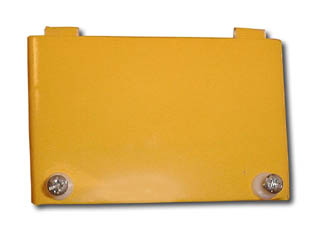

View of bottom hatch. Note tab retainers and washers with mounting screws.

 a00142 fuse bottom hatch copy.jpg (12552 bytes)

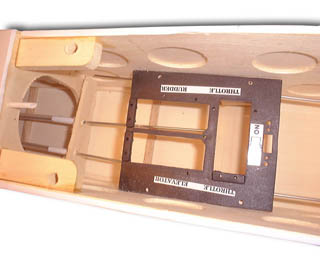

Inside of fuselage showing universal servo tray and steel control rods in guide tubes

View from top of fuselage looking slightly aft.

Note all clean wood construction. No Foam.



 a00142 fuse and servo tray copy.jpg (20505 bytes)

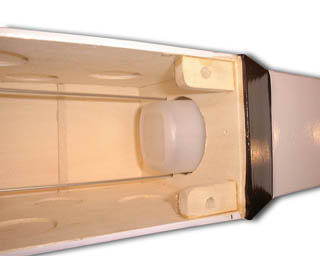

Inside of fuselage showing back of fuel tank and forward wing mount bolt blocks

View from top of fuselage looking slightly forward.

 a00142 fuse inside with back of tank copy.jpg (15474 bytes)

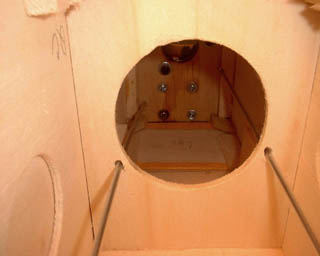

Inside of fuselage with fuel tank removed. Looking forward from radio compartment into fuel tank compartment to back of firewall.

Steel engine throttle and nose gear steering rods in plastic tubes, visible left and right.

 a00142 fuse and inside tank compartment copy.jpg (15681 bytes)

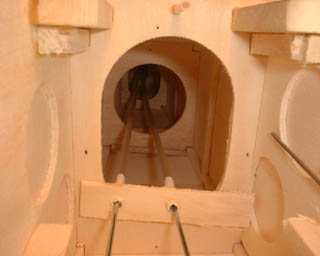

Inside of fuselage   looking aft from radio compartment towards tail.

Steel elevator and rudder control rods in plastic tubes, visible left and right.

Control rod cross support shown loose, to be final placed and attached following radio installation.

 a00142 fuse inside looking back copy.jpg (16442 bytes)

Tail section of fuselage before mounting horizontal and vertical stabilizers.

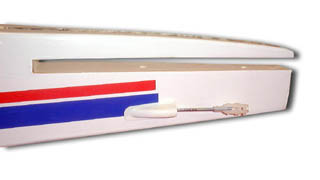

View from left side of fuselage looking slightly aft.


a00142 fuse left rear with clevis copy.jpg (12831 bytes)



Tail section of fuselage before mounting horizontal and vertical stabilizers.

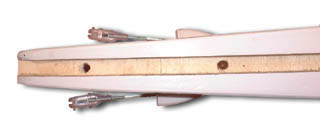

View from above. Note exit guides, Dubro clevises on threaded steel rods and holes for the vertical stabilizer mounting bolts.

 a00142 fuse top rear with rods and clevises copy.jpg (10829 bytes)
