More Pictures of Apache II Engine Mount

 a00142 300x201 drop shadow copy.jpg (28793 bytes)

View from right side of fuselage slightly forward of mount looking left and aft.

Prebent Fuel Tubing visible protruding from tank.

 a00142 fuse from front right copy.jpg (17392 bytes)

Picture of Engine Mount from right front.

Prebent Fuel Tubing visible protruding from tank.

Note 45 degree rotation from vertical. Helps to ensure more consistent fuel mixture.

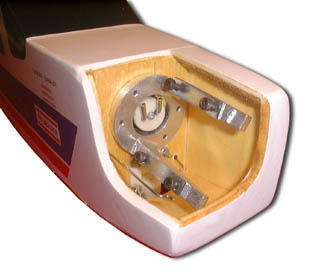

 a00142 fuse front with mount and tank copy.jpg (21459 bytes)

Picture of Engine Mount from above.

Prebent Fuel Tubing visible protruding from tank.

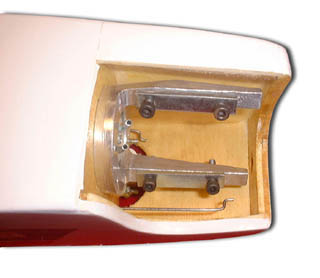

 a00142 fuse front top view of mount copy.jpg (18913 bytes)

Picture of Engine Mount from above looking back slightly towards firewall.
