The VMAR Engine Test Stand is the Test Stand to beat all Test Stands! Accommodates 2 and 4 stroke engines from .09 or less to 1.80 cu. in. or more! Easily adapts to all sizes and shapes! Put it together, clamp in your engine, clamp down the stand, set up the fuel and the fuel tank of your choice (consumer supplied) and you are ready to test your heart out! Quality heavy duty components and detailed assembly manual included. |

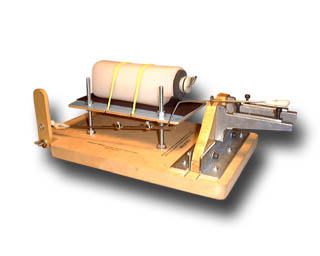

| Picture of Engine Test Stand
completely assembled. Customer provides fuel tank suitable for engine and
fuel type.
Note completely adjustable engine clamp type T-Beams and Fuel Tank Platform. Platform can be raised or lowered to ensure proper fuel feed. |
 |
| Dimensions [mm] of Engine Test Stand as seen from right side. |
 |

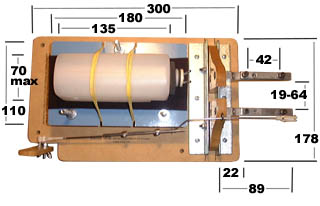

| Dimensions [mm] of Engine Test Stand as seen from above. |
 |

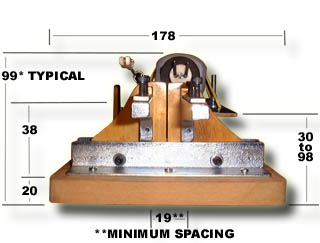

| Dimensions [mm] of Engine Test Stand as seen from front with engine T-Beams at minimal spacing for small engines. |
 |

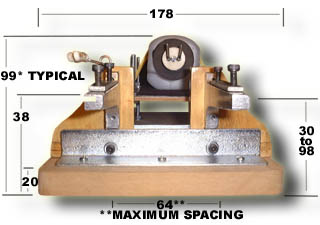

| Dimensions [mm] of Engine Test Stand as seen from front with engine T-Beams at maximum spacing for large engines. |
 |
| Dimensions [mm] of Engine Mount with Clamps mounted as far forward as possible. |
 |
| Dimensions [mm] of Engine Mount with Clamps mounted as far aft as possible. |
 |
| Dimensions [mm] of Engine Mount with Clamps mounted as far apart as possible. |
 |
